Used Meyn poultry processing plant



• Complete Meyn Poultry Processing installation with a capacity of up to 3000 birds per hour, expandable to 6000 birds per hour.
• Including wastewater treatment plant and rendering plant
• Suitable for broilers with a minimum of 1100 gram and maximum of 2500 gram (average 1500 gram)
• Bleeding time 120 seconds, scalding time 120 seconds at 58 to 60 degrees Celsius
• Pre-chilling and water chilling
• Total water consumption approximately 15 liters per bird
• Including overhead conveyor, drives, frequency regulators, line tensioners, idler units, chain lubricators, chain, shackles for killing, evisceration, weighing and cut-up
• The manufacturing year 1999-2000, machines have been well maintained according to the OEM operation and maintenance standards
• Processing plant started its operation on January 1st, 2006
• Made out of stainless steel and other non-corrosive materials
• Equipment not explicitly mentioned on this webpage is not part of the scope of supply
• The steam boiler for the rendering plant and compressed air installation for the processing plant is specifically not included in the scope of supply; the current owner will reuse these installations
• Please contact us directly for detailed price and payment details



Brand:	MEYN
Capacity:	3000 - 6000 Birds per hour (BPH)
Origin:	The Netherlands



Reception Area:

• Roller track and nylon chain conveyor to transport live bird crates

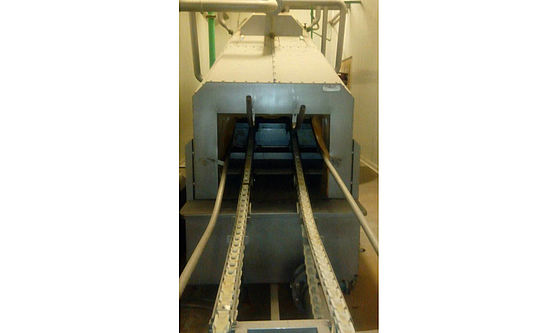

• Meyn automatic Crate Washer with a capacity of up to 850 crates per hour (crate dimensions: Length 800 mm, Width 600 mm, Height 300 mm).

Roller track and nylon chain conveyor to transport live bird crates in the arrival area

Meyn automatic crate washer for washing and sanitizing live bird crates



Killing & de-feathering:

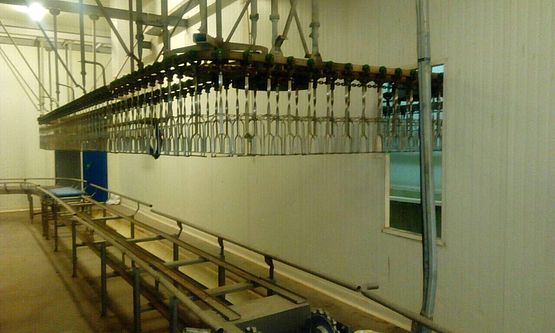

• Complete overhead conveyor galvanized T-track, 6" trolley, and shackle pitch with a length of 110 meters and 2 drive units.
• IM-8 type de-feathering shackles
• Automatic Bird Counter

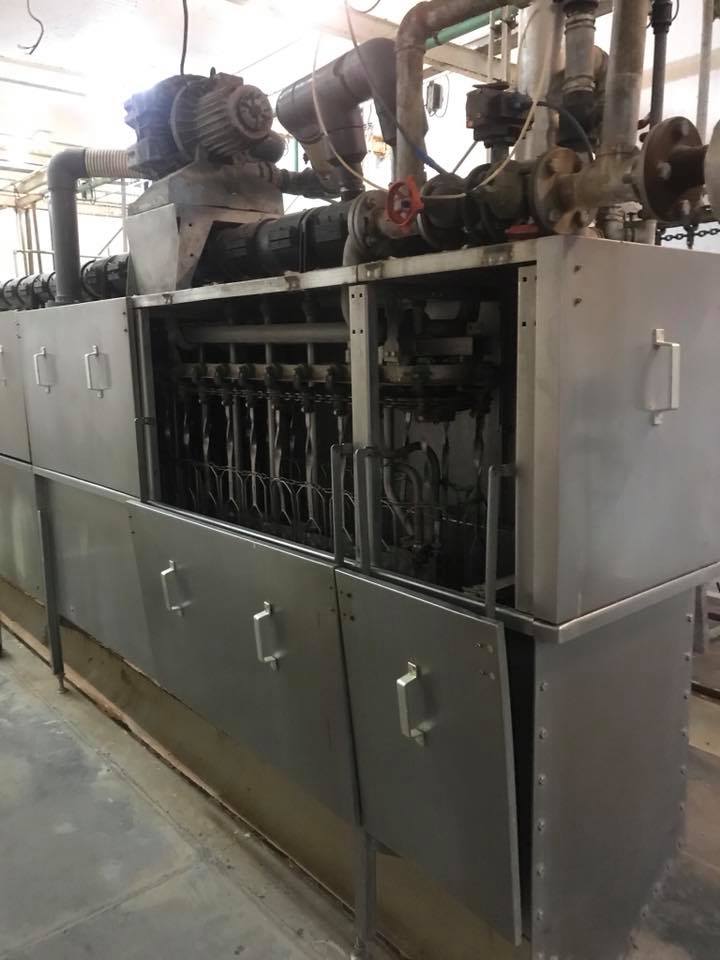

Meyn Jacuzzi scalder, consisting of 3 two-pass sections of 2.5 meters long, arranged in a single row, designed for a capacity of up to 3000 BPH. Supplied with aluminum canopy and stainless steel side panels.

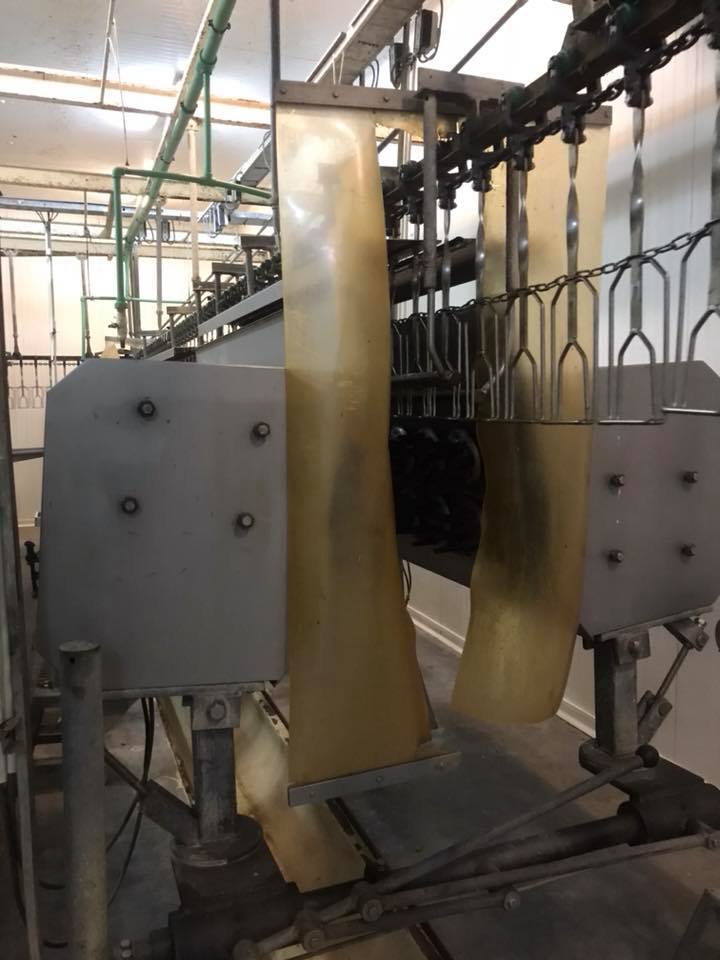

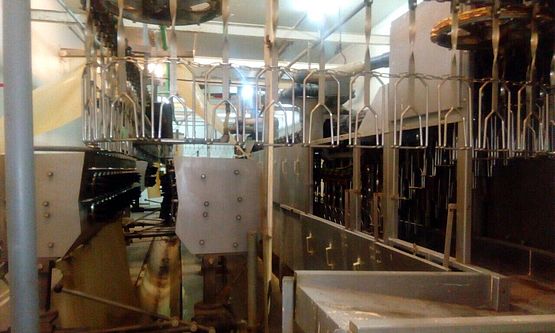

Plucking section consisting of one JM-64 and one JM-32 automatic de-feathering machine



Meyn Saturnus-type Head and Trachea Puller

Automatic hock cutter installed in a 180-degree curve and an automatic hock unloader with 10 unloading units.



Automatic Evisceration system:



• Rehanging belt conveyor, belt width 400 mm, length 6 meters with fixed speed drive

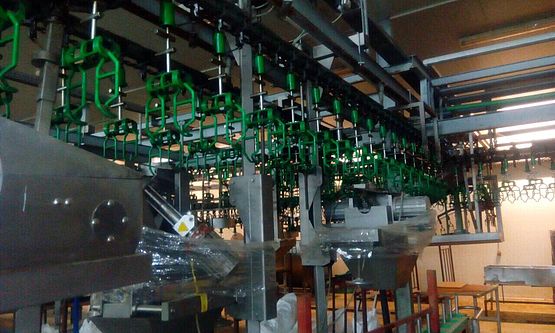

• Overhead conveyor, consisting of approximately 90 meters of galvanized T-track with a trolley pitch of 6 inches and a shackle pitch of 12 inch
• 591 nylon trolleys with nylon wheels
• 3 drives, 1 frequency regulator, 1 tension unit, various idler units, up and downs and chain lubricator
• 296 MM-12 synthetic evisceration shackles with 12 mm leg space

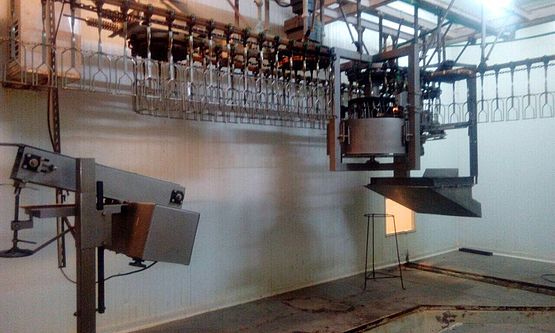

• Complete automatic evisceration line with Automatic Vent Cutter Type VC-7 with 7 units, Automatic Opener type Jupiter-7 with 7 units, Automatic Eviscerator Type Maestro-12 with 12 units, Cropping Machine Type CM-8 with 8 units, combined automatic Neck Breaker / Puller type NC-7, FI-7 Final Inspection Machine type FIM-7 with 7 units, Inside/Outside Bird Washer with 7 units

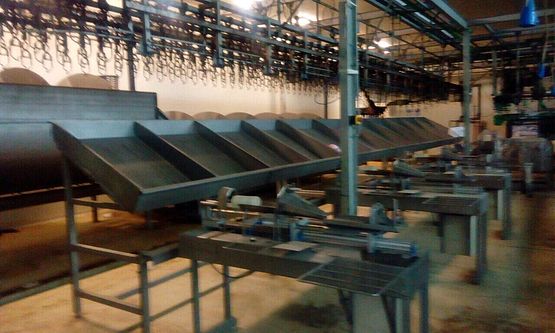

• Evisceration trough belt with a length of 6 meters and three work stations with feet controlled tap, hygienic knife holder and giblet transport channels
• 2 giblet pumps, 3-inch inlet, to pump hearts, livers, and gizzards
• 1 giblet pump, 4-inch inlet, to pump necks
• Gizzard Handling with a Meyn Gizzard Harvester CD-6000, Gizzard Auger and Gizzard Control table with a double set of peeler shafts

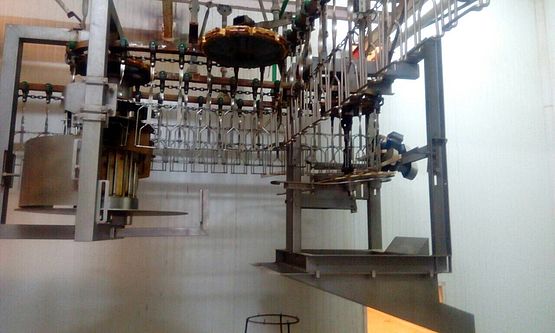

• Automatic Bird Unloader (5 units) and an automatic chain and shackle washer

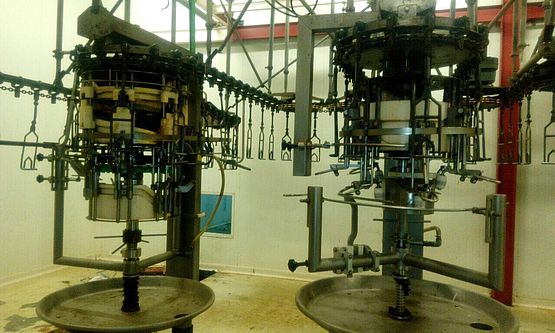

VC-7 automatic vent cutter and Jupiter-7 automatic opener

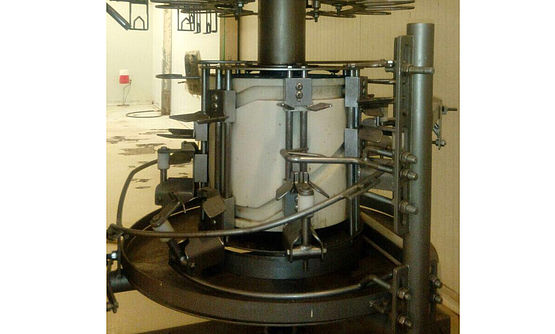

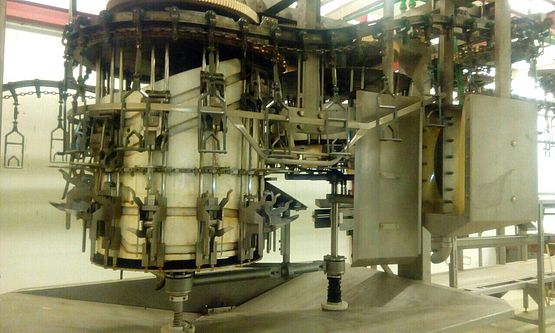

Maestro automatic eviscerator with 12 units, which automatically removes the total package and deposits it in the flat belt conveyor

Meyn Gizzard Harvester CD-6000, Gizzard Auger and Gizzard peeling table with double peeler shafts

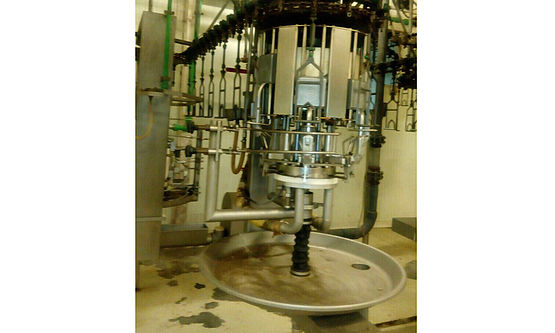

Automatic Cropper CM-8 to automatically remove remaining crops and pieces of the windpipe.

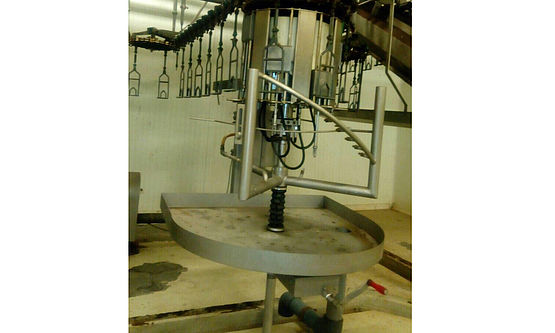

Combined automatic neck breaker and neck puller

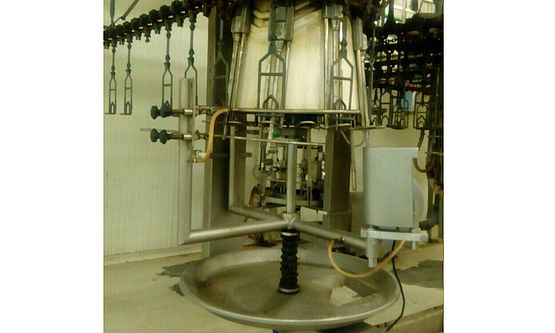

Automatic Final inspection machine with 7 units to remove lungs and residual matter from the cavity of the carcass by means of vacuum.

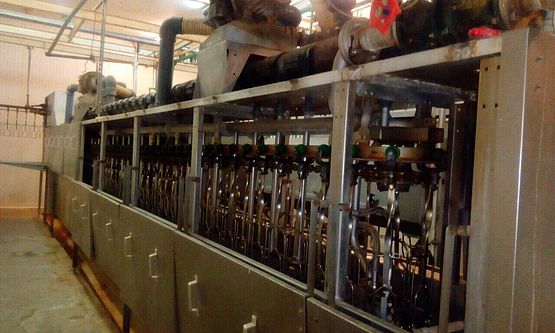

Inside / Outside Bird washer with 7 units to thoroughly spray wash the carcasses from the inside and outside.



Chilling:

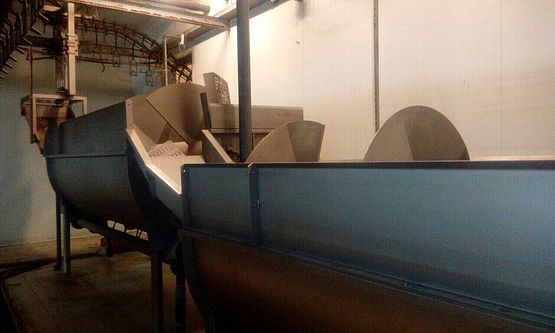

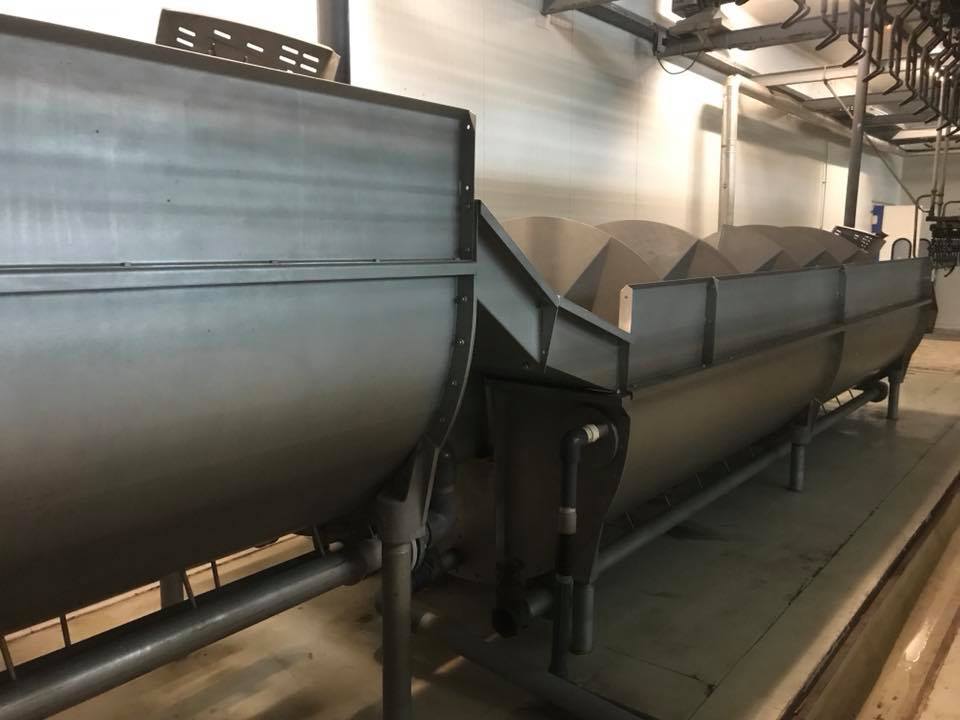

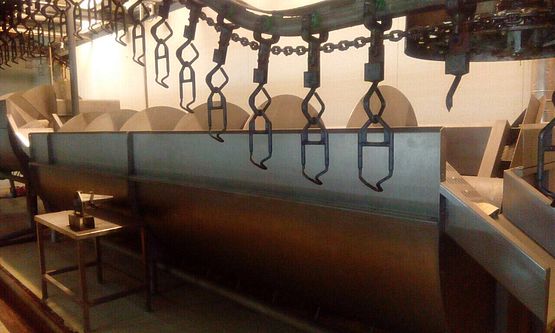

• One screw chiller for the pre-chilling of products. The 1600 mm wide chiller is 3 meters long. Residence time is 10 minutes with an entry temperature of 35°C and a capacity of 3000 birds per hour. An end temperature of 15°C can be realized.



• One screw chiller for chilling of products. The 1600 mm wide chiller is 6 meters long. Residence time is 11 minutes with an entry temperature of 15°C and a capacity of 3000 birds per hour. An end temperature of 1°C can be realized.



3 meter long Meyn screw chiller which can be used for pre-chilling with an entry temperature of 35°C and a realizable end temperature of 15°C.

6 meter long Meyn screw chiller used for chilling eviscerated product with an entry temperature of 15°C and realizable end temperature of 1°C.





Weighing & Packing:



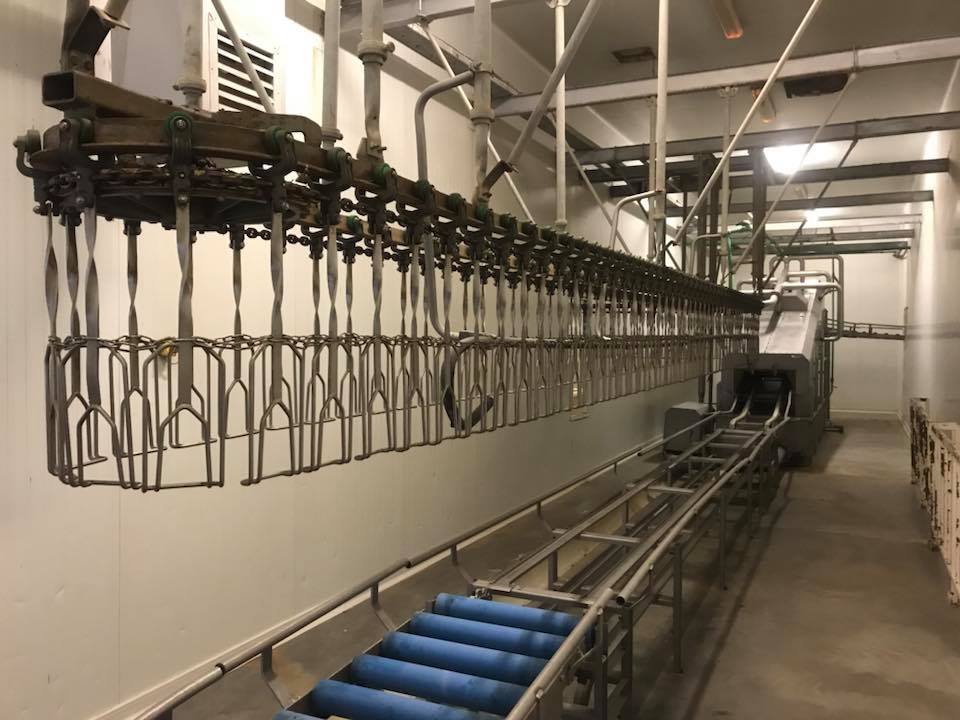

Weighing

• Automatic in-line 180° Weighing Machine with 8 units
• A complete overhead conveyor consisting of galvanized T-track, 8" shackle and trolley pitch
• Approximately 85 meters long with 1 drive unit and 419 synthetic weighing shackles, type W1

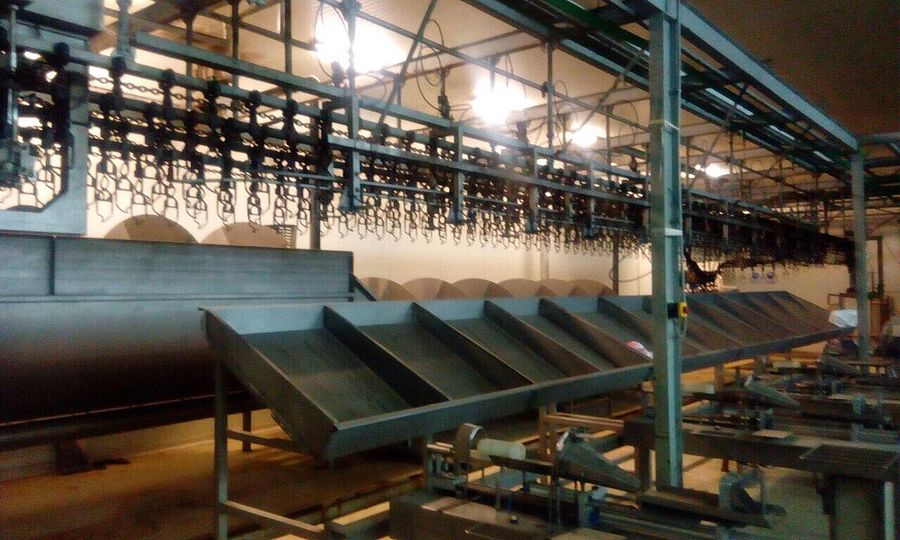

• 4 drop stations including 800 mm wide receiving bins
• 7 drop stations including 1000 mm wide receiving bins
• Pneumatic push-off cylinder per station
• Consumes 3 nm3/h (normal cubic meters per hour) at 3000 drops per hour
• Meyn weighing computer type M300 for in-line weighing, with software for automatic testing, fault finding and calibration. Installed in a separate cabinet including a no-break power supply system
• Meyn linear automatic bird unloader suitable for unloading up to 10.000 birds per hour

Packing

• 3 semi-automatic bird bagging machines, type HA-82, with a capacity of up to 700 birds per hour. Fully pneumatic operation. With tape sealer and cutting unit for excess bag material. Air consumption at 6 bar: 1.5 nm3/h
• 2 stainless steel packaging tables with 4 bagging horns and 4 tape sealers for manual packing
• roller track conveyor for the transportation of products in crates/cartons, width 500 mm and 12 meters long including 1 curve section
• 3 static screens type giblet strainer to separate hearts/livers, gizzards and necks from the process water



Automatic cut-up system:



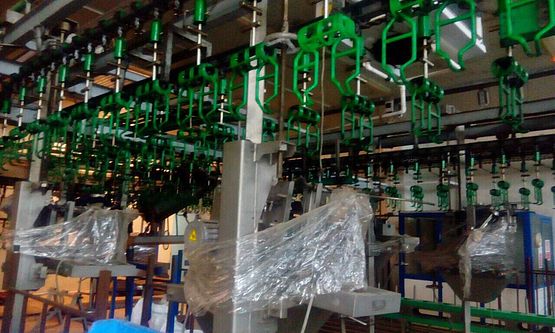

• Meyn cut-up line, complete with overhead conveyor consisting of galvanized T-track, trolley pitch 6" and shackle pitch 12", with a length of approximately 33 meters, 1 drive unit and 109 cut-up shackles type CW-1, with the following modules:
• Automatic High Yield Wing Cutter, which cuts the whole wing at breast level while the wings are being stretched, pre-cut, and then cut through the joint. This results in a wing with a small amount of breast meat. The module holds two cutting units consisting of a rotating circular knife.
• Automatic Bird Halving Machine, which cuts the whole breast from the bird including the backside (horizontal cut). The module holds two cutting units consisting of a rotating circular knife.
• Automatic Back Piece Cutter, which cuts the saddle in two parts and, when required, removes the back from the legs. The module holds two cutting units consisting of a rotating circular knife.
• 3 Meyn shackle guide systems to turn the cut-up shackle in the position required for a correct in-feed for the next cut-up machine
• Mechanical line clearer mounted in a 180° curve
• Automatic chain and shackle washer with a length of 1260 mm
• Meyn cone deboner for manual cut-up of broilers up to a capacity of 750 per hour. Maximum live weight of 4.5 kilograms. Machine length is approximately 6.8 meters and has 4 working places with an average width of 1.3 meters. Cone pitch is 248 mm or 9.7 inches.
• 2 manually operated cut-up machines



Offal Handling:

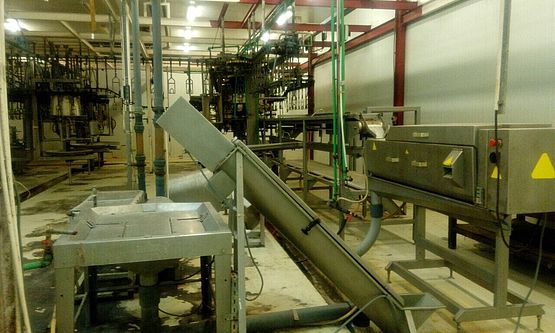

• Feather/offal pump to pump water with feathers and offal from the pump pit to the separator position. Suitable for a production capacity of about 3000 birds per hour with a water usage of 10 liters per bird and a raising height of 10 meters.
• Water separator for intestines and feathers with a capacity of up to 4000 birds per hour
• Water circulation pump for pumping water from the feather separator to the pluckers for feather transport. Pump capacity is 20 m3/hour and is suitable for a production capacity of up to 5100 birds per hour.
• Vacuum pump for use of the Final Inspection Machine and the suction of blood.
• Vacuum tank for low-pressure air with a capacity of up to 710 liter
• Vacuum tank for blood and lungs with a capacity of up to 5000 liters



Machine Room:

• Hot water boiler with a capacity of up to 150.000 kcal/hour, suitable for a Jacuzzi scalder with 3 sections. Including burner, recirculation pump, expansion vessel, thermostat, and piping.
• Electrical installation consisting of control panels to control all equipment installed and one set of electrical cabling.



Waste Water Treatment

• Physical wastewater treatment unit designed and manufactured by Meyn
• Type ZB/MF 3500-28 with a capacity of up to 45 m3/hour
• 1 feed pump to static screen including check valves, piping and level control
• 1 static screen, type ZB-2000, including collection gutters, brush cleaning device and supporting construction
• piping from static screen to flotation basin (maximum distance 5 meters)
• 1 micro-flotation basin, type Meyn MF 3500-28 made of stainless steel and equipped with an electric top scraper, electric bottom scraper, recirculation system including pump and pressure vessel, supporting micro-aeration system and integral sludge bin with a capacity of 1140 liters
• 1 pneumatic pump for sludge discharge, including level control
• 1 electrical panel, including automatic start and stop cycles and Omron PLC control



Design parameters:

Influent
Water temperature	ca. 25°C
Capacity	45 m3 per hour or 360 m3 per day
C.O.D.	ca. 5100 mg/ltr
B.O.D.	ca. 2200 mg/ltr
Oil and Fat	ca. 1100 mg/ltr
Suspended solids	ca. 1800 mg/ltr

**Above mentioned figures are based on the following assumptions: slaughter capacity of 3000 birds per hour with a live bird weight of 1.8 kg, water consumption of 15 liters per bird and 8 hours of production.





Est. Effluent parameters	Reduction (%)	Parameter (mg/l)
C.O.D.	ca. 48	ca 2650
B.O.D.	ca. 48	ca. 1170
Oil and Fat	ca. 60	ca. 450
Suspended solids	ca. 60	ca. 79
Flotation Sludge Production
Sludge production			ca. 0.9% of throughput
			ca. 3.5 m3 per day
Dry solids content			ca. 11%





Est. Consumption figures (based on 45 m3/hour)
Est. power consumption	ca. 8- 9 kWh
Est. compressed air (including sludge pump)	ca. 3 - 4 nm3 per hour



The required surface for the installation of components mentioned is ca 80 - 100 m2. It is recommended to place the installation in a closed and dry room.





Rendering Plant:



• Complete dry rendering plant designed and manufactured by Meyn
• Allows profitable recovery of protein by processing the normally inedible waste products resulting from the slaughter of broilers.
• Raw materials include offal, wet feathers, blood, heads, feet and dead on arrivals processed in natural proportions to achieve a uniform mixed protein meal
• Raw materials will be sterilized, hydrolyzed, and dried in a cooker-drier to produce a mixed meal that can be used as part of the protein and energy source in the formulation of broiler feed rations.
• Rendering plant has been sized to process the inedible waste products in natural proportions resulting from the slaughter of 28.800 broilers per day, 6 hours of per day at an average live weight of 1.6 kg. This results in the following daily available quantities of raw materials:

	Plant capacity
	3000 BPH	6000 BPH
Water saturated feathers	4272 kg	9504 kg
Offals, heads and feet	3600 kg	7200 kg
Blood	864 kg	1728 kg
Dead on arrivals	288 kg	576 kg
Total raw material flow per day	9504 kg*	19008 kg*
Output: Mixed Meal Product	2850 kg**	5700 kg**
Plant operating time	10 -12 hours per day***	20-22 hours per day***

1. * The quantity of 9504 kg of raw material will be treated in two (2) charges of 4752 kg in one 6500 liter cooker-drier, type MRE 6.5. The quantity of 19008 kg of raw material will be treated in four (4) charges of 4752 kg in one 6500 liter cooker-drier, type MRE 6.5
2. ** including loading and unloading
3. *** approximate yield of mixed meal product at an assumed moisture content of 10% and estimated fat content not exceeding 30% oil



Scope of Supply



1. Raw material handling section

• raw material handling bin, including live bottom fitted with four heavy-duty screws with a diameter of 300 mm with a total capacity of 15 m3
• Cooker loading screw conveyor to transfer the raw materials from the raw material handling bin into the cooker-drier. Dimensions: 500 mm diameter x 5 meters long
• Agitated blood storage tank to receive and store liquid blood with a capacity of 200 liters. Supplied with agitator,1.5 kW drive unit, and a discharge connection.
• Blood Transfer / Dosing pump to transfer blood from the blood storage tank into the cooker-drier.
• One set of blood transfer pipework

2. Processing section

• 6500-liter cooker-drier type MRE 6.5: Cooker being constructed in carbon steel plate having a 25 mm inner shell and 10 mm outer steam jacket, suitable for being heated to 7.0 bar pressure on the jacket and agitator, capable of withstanding an internal pressure of 3.0 bar.

  Supplied with 45 kW drive consisting of shaft mounted gearbox, fluid coupling, V-belt assembly and electric motor, all mounted on a common sub-frame

  The agitator is fitted with steam inlet and condensate outlet rotary unions

  The vessel has 50 mm thick insulation to prevent heat loss

  The machine is fitted with steam manifold, jacket release valves, combination steam trap/strainer, gauge panel containing pressure and temperature gauges

  The cooker has a manually operated charging door and is fitted with a safety type manual discharge door.

  The cooker was fully assembled and hydrostatically tested, jacket, internal shell and agitator witnessed by Lloyds Register of Shipping and release certificates issued for these tests

  The cooker-drier is designed according to British Standard 5.500 for unfired pressure vessels regulations
• Automatic end-point moisture controller to monitor the residual moisture content of the material being processed
• Temperature chart recorder and moisture analyzing testing unit

3. Semi-automatic Meal Handling

• Meal cooling/holding bin to receive a cooked product and cool prior to screening with a capacity of 4 m3 including agitator's arms
• Meal transfer conveyor to feed the cooled material to the vibrating system. Dimensions: 200 mm diameter x 550 mm long
• Meal screening unit with bagging off spout for removal of oversize and foreign matter from the meal. Capacity: 1600 kg / hour

4. Vapor handling (air-cooled condensing)

• Set of vapor piping to interconnect the cooker, cyclone, Condensor to the atmosphere
• Solids separation vessel for removal of solid portions  from the vapor prior to entering the condenser
• Air-cooled condenser to remove condensable from the vapor stream by means of indirect contact with an air draught provided by electrically powered fans. Power consumption: 30 kW.
• Set of condensate and non-condensable services to interconnect the condenser outlet to the condensate tank, condensate tank to the pump and the non-condensable fan and from there to the atmosphere
• Mild steel pipework, condensate tank, and pup 2.2 kW and non-condensate extraction fan 5.5 kW
• Electrical services: main control panel to control all installed components







Complete Meyn 3000BPH processing plant



Brand:	Meyn
Type:	Complete 3000BPH poultry processing plant
Year manufactured:	2001 - 2003
Capacity:	up to 3000 birds per hour (expandable to 6000 birds per hour)
Current state:	In excellent condition, well maintained
