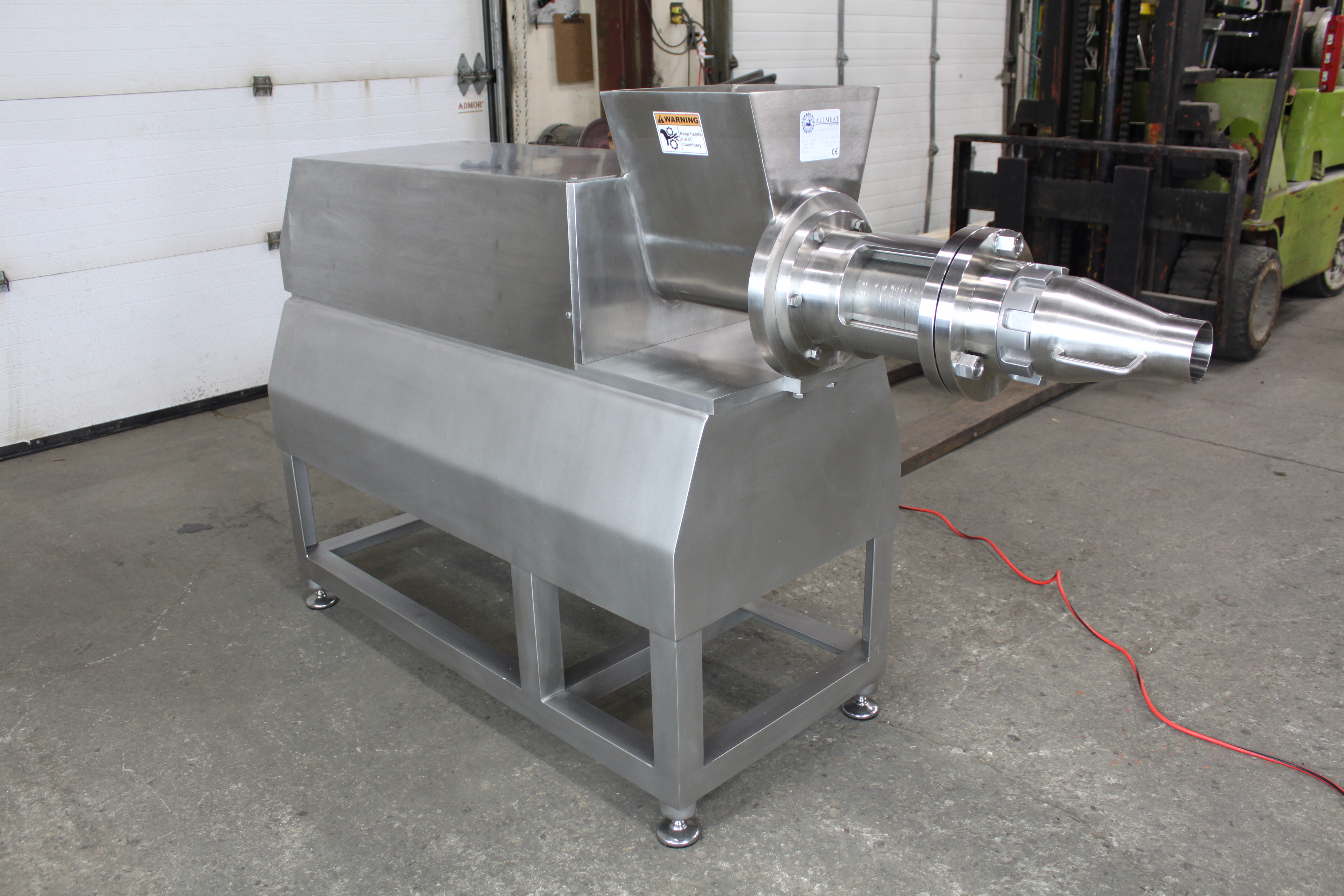

The A1 Meat Bone Separator



The A1 Meat Separator is a solid construction mechanical separator and is built for extended use in versatile
applications. Its simple and sleek design allows for easy teardown and assembly.

The A1 Meat Bone separator line consists of the following meat separator machines:



• A1025 250-400kg (p/h)
• A1050 500-1000kg (p/h)
• A1150 1500-2000kg (p/h)
• A3400 2500-4000kg (p/h)
• A4500 4500-5000kg (p/h)







Application:		Deboning – soft separation – grinder
Capacity:		Input 500-1000 kg  depending on raw materials – Throughput will vary due to input material
Weight:		650 kg
Feed Auger:		102 mm
Hopper Size:		305 mm
Dimensions:		(L) 2045 mm x (W) 623 mm x (H) 1258 mm
Raw material:		Chicken – Turkey – Duck – Fish
Technical:		Belt-driven 20 hp (14.7 kW) – Inline Feed/Deboning Auger
LCS (Level Control Sensor):		Optional
Control Panel:		Optional



A1050 Meat-bone Separator

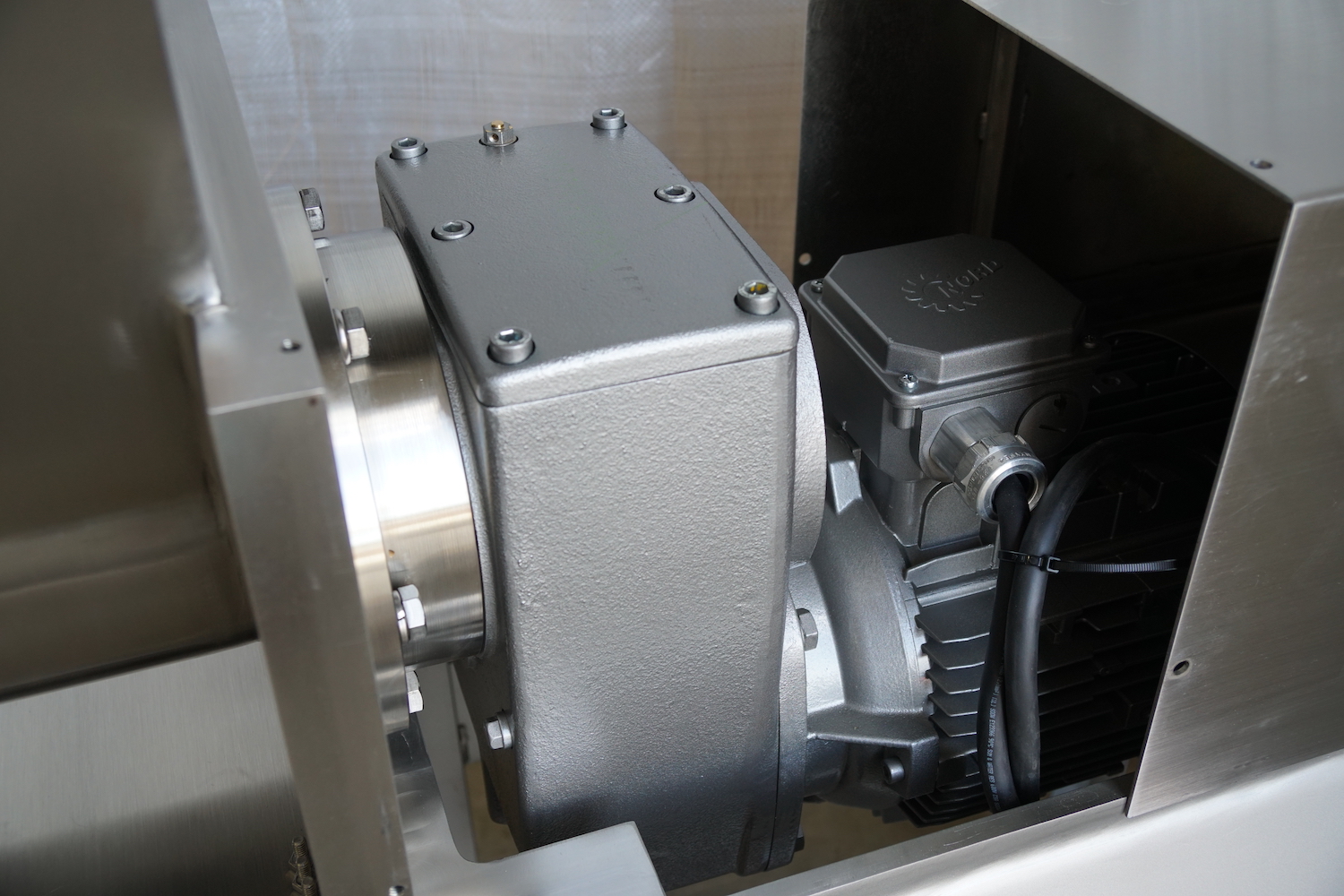

20 HP(14.5Kw) Nord Direct Drive, Basic Start/Stop Control

Suitable for fish and poultry.



• Exceptionally high yield (90%+)
• Provides optimum texture with low calcium
• Very low-temperature rise
• Compact design / small footprint
• Heavy-duty construction ensures long machine life
• Easy to assemble and disassemble
• Low maintenance
• Equipped with the industry's top-quality drives
• Made in Canada.



The A1 Meat bone Separator

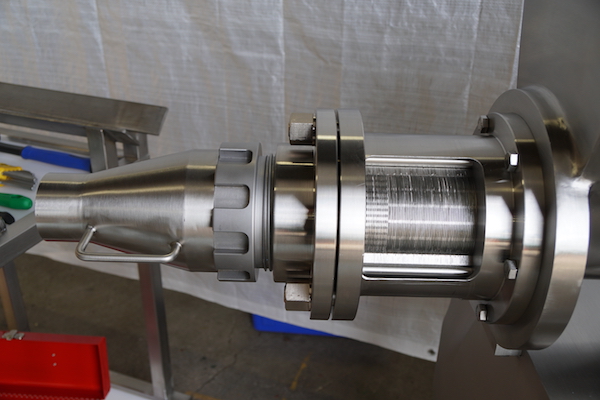

Turn raw material into premium quality MDM products with the innovative individual plated head design. The design allows for low operating speed, which in return produces a minimal temperature rise and optimal yield.

The A1 Meat separator has been specifically designed to be robust, durable, and extremely user-friendly, and is designed for a wide range of applications in meat bone separation. The A1 Meat bone separator has proven to surpass its competitors when it comes to performance, reliability, and ease of operation.









With decades of experience in machine manufacturing, engineers continue to create state-of-the-art equipment by taking the meaning of ‘lean’ machine to the next level.

The innovative design team has trimmed unnecessary components from the mechanical separators in order to reduce cost and simplify machine operation for our customers without compromising machine performance and durability.



We are proud to say that the A1 Meat Separator is a piece of superior-built machinery that outperforms our competitors.





Get in touch with us now and get one build for you today.
