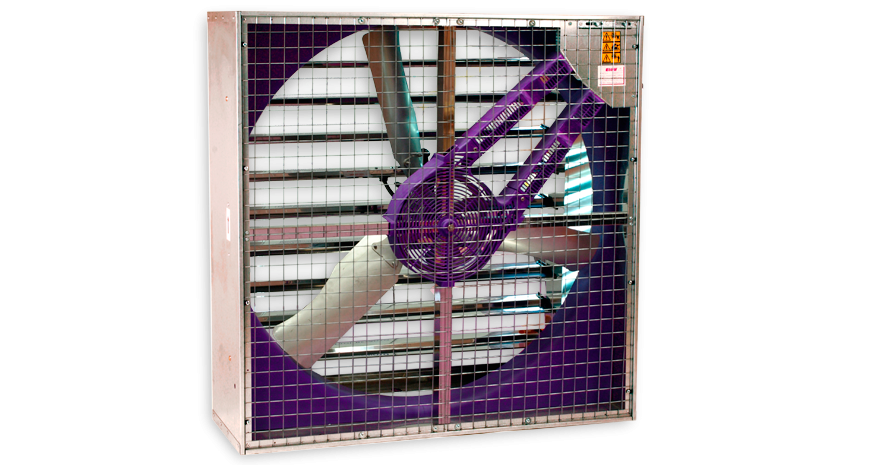

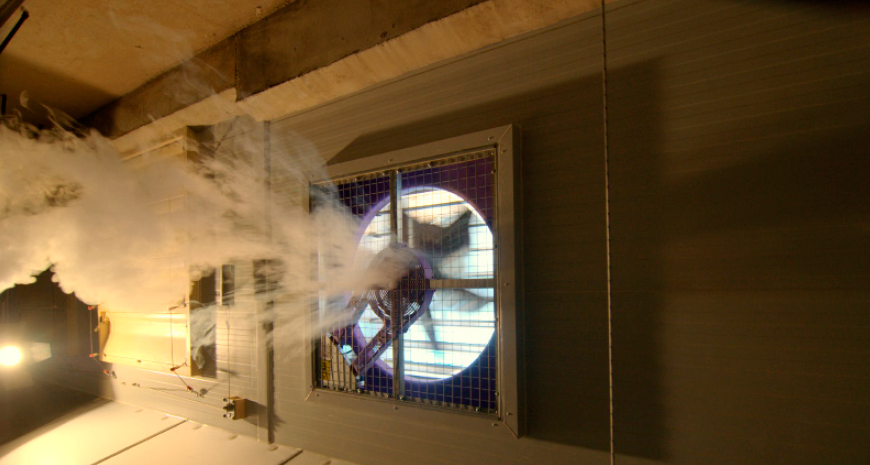

Exhaust fans (Galvanized frame) EX-50



• The new aerodynamic design of the blades improves the efficiency of the whole set by obtaining a higher value of the flow ratio (m3/h) per electric consumption unit in watts. The aerodynamic design of the propellers by means of the computer programs in cooperation with the most prestigious testbeds, enable us to distribute the pressure on the hydrodynamic profiles along the blade, and so achieve higher efficiency.



• The new shutter improves the aerodynamic set coefficient and allows it to better close in order to avoid the light and air inlet inside the facilities. The new design of the closing shutter design guarantees a higher opacity in order to prevent the light from getting inside. It also enables a higher water tightness degree for perfect insulation when the fan is in pause mode.



• The centrifugal system is made of black acetal resin with UV protection.



• Sliding motor specially designed to reduce the stress of the motor bearings and improve the new highly efficient electric motor performance; this prolongs the useful life of the equipment along with higher power efficiency.



• The special support made of plastic eliminates any vibration.





MODELS

Ref	Subst	Description
EX1-50T-INOX	20031	Three-phase exhaust fan Ex50” with stainless steel blades of 1 HP
EX15-50T-INOX	20041	Three-phase exhaust fan Ex50” with stainless steel blades of 1´5 HP
EX1-50T-IE2-INOX	20031-IE2	Three-phase exhaust fan EX 50” totally in stainless steel of 1 HP. IE2 motor
EX15-50T-IE2-INOX	20041-IE2	Three-phase exhaust fan EX 50” totally in stainless steel of 1 HP. IE2 motor



TECHNICAL DATA

MODEL	AIRFLOW	FAN	MOTORIII	NIVEL SON.	APROX WEIGHT
EX 50¨-1	38.600 m3/h  /  22.700 CFM	Ø 1.270	1 CV  / 0.76 Kw  /  230 - 400 V (Tensión)	67 Dba	85
EX 50¨-1,5	41.900 m3/h  /  24.600 CFM	Ø 1.270	1.5 CV  / 1.1 Kw  /  230 - 400 V (Tensión)	69 Dba	85



DIMENSIONS:

	A	B	C
EX50¨-1	1.380	1.380	450
EX50¨-1,5	1.380	1.380	450

*Measure (mm)

• Fan structure made of galvanized steel.
• „Sheets made of steel with a reinforced centrifugal opening system
• Central pulley and propeller support including a high-quality watertight greased bearing for life.
• Motor with an IP 55 protection and insulating coil degree type F.
• Fan venturi is made of plastic material with UV protection.
• „Front grid according to regulation.
• Locking shutter with a specific design in order to avoid the air inlet and light entrance.
