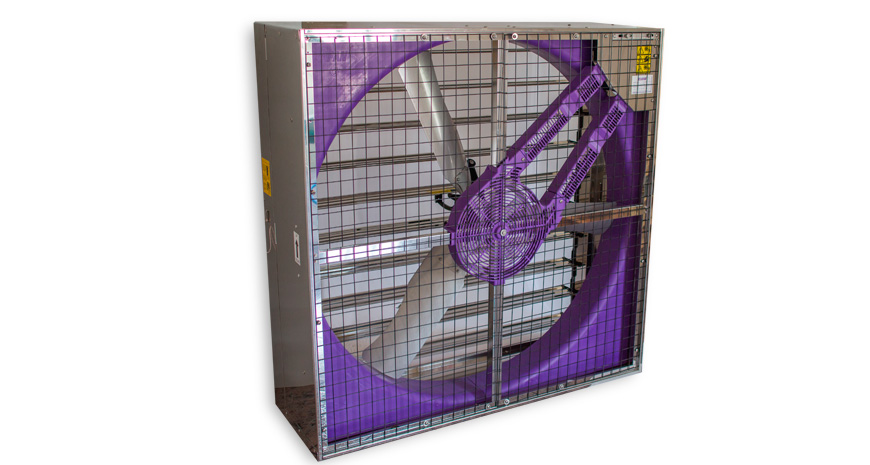

EX-50 Exhaust fan for poultry farms
The powerful EX-50 is specially developed for its low maintenance, long-endurance, and excellent airflow/power consumption.
The design system of the R + D department as well as the quality of the materials used, guarantees high performance and reliability, thanks to more than 25 years of experience.
- The new aerodynamic design of the blades improves the efficiency of the whole set by obtaining a higher value of the flow ratio (m3/h) per electric consumption unit in watts. The aerodynamic design of the propellers by means of the computer programs in cooperation with the most prestigious testbeds, enable us to distribute the pressure on the hydrodynamic profiles along the blade, and so achieve higher efficiency.

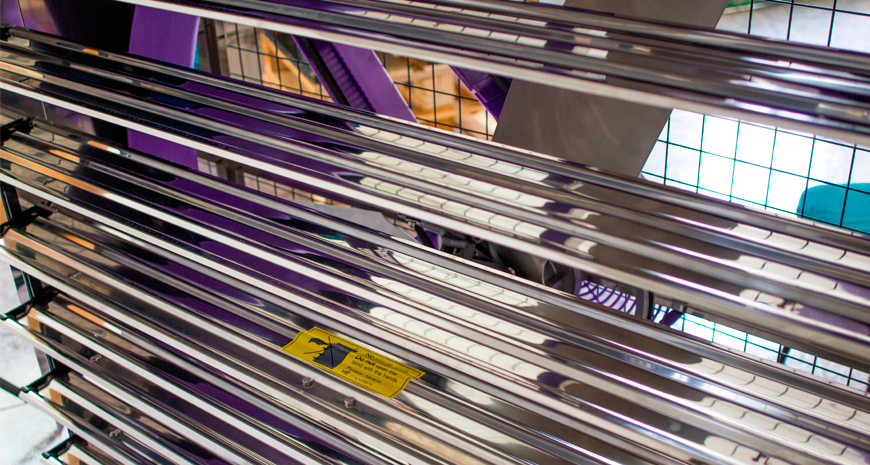

- The new shutter improves the aerodynamic set coefficient and allows it to better close in order to avoid the light and air inlet inside the facilities. The new design of the closing shutter design guarantees a higher opacity in order to prevent the light from getting inside. It also enables a higher water tightness degree for perfect insulation when the fan is in pause mode.

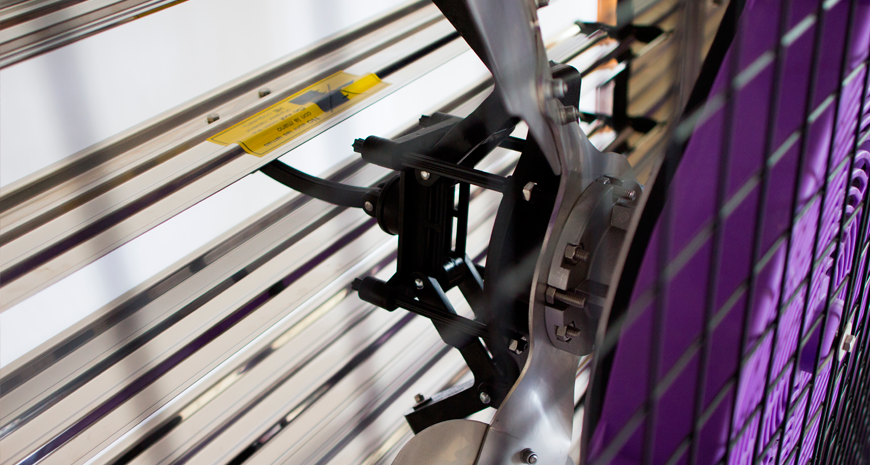

- The centrifugal system is made of black acetal resin with UV protection.

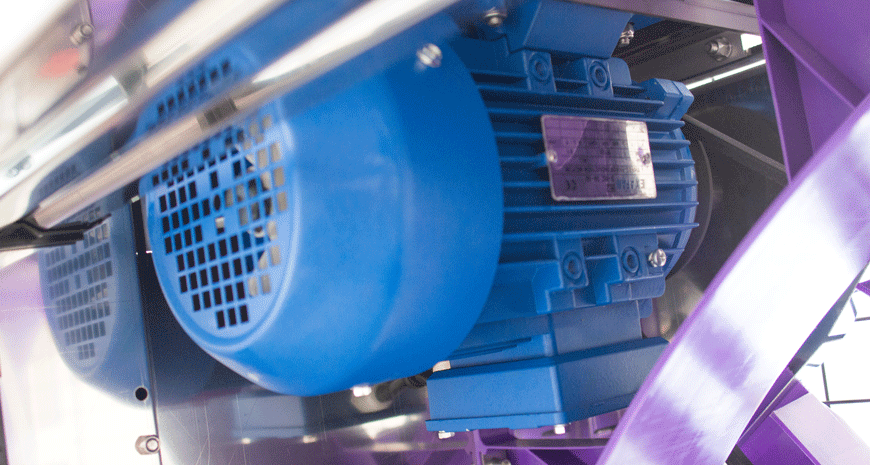

- Sliding motor specially designed to reduce the stress of the motor bearings and improve the new highly efficient electric motor performance; this prolongs the useful life of the equipment along with higher power efficiency.
- The special support made of plastic eliminates any vibration.
MODELS
| Ref | Subst | Description |
| EX1-50T-INOX | 20031 | Three-phase exhaust fan Ex50” with stainless steel blades of 1 HP |
| EX15-50T-INOX | 20041 | Three-phase exhaust fan Ex50” with stainless steel blades of 1´5 HP |
| EX1-50T-IE2-INOX | 20031-IE2 | Three-phase exhaust fan EX 50” totally in stainless steel of 1 HP. IE2 motor |
| EX15-50T-IE2-INOX | 20041-IE2 | Three-phase exhaust fan EX 50” totally in stainless steel of 1 HP. IE2 motor |
TECHNICAL DATA
| MODEL | AIRFLOW | FAN | MOTORIII | NIVEL SON. | APROX WEIGHT |
| EX 50¨-1 | 38.600 m3/h / 22.700 CFM | Ø 1.270 | 1 CV / 0.76 Kw / 230 - 400 V (Tensión) | 67 Dba | 85 |
| EX 50¨-1,5 | 41.900 m3/h / 24.600 CFM | Ø 1.270 | 1.5 CV / 1.1 Kw / 230 - 400 V (Tensión) | 69 Dba | 85 |
DIMENSIONS:
| A | B | C | |
| EX50¨-1 | 1.380 | 1.380 | 450 |
| EX50¨-1,5 | 1.380 | 1.380 | 450 |
*Measure (mm)
- Fan structure made of stainless steel.
- Sheets made of steel with a reinforced centrifugal opening system.
- Central pulley and propeller support including a high-quality watertight greased bearing for life.
- Motor with an IP 55 protection and insulating coil degree type F.
- Fan venturi made of plastic material with UV protection.
- Front grid according to regulation.
- Locking shutter with a specific design in order to avoid the air inlet and light entrance.
*Possibility to supply with an IE2 motor
